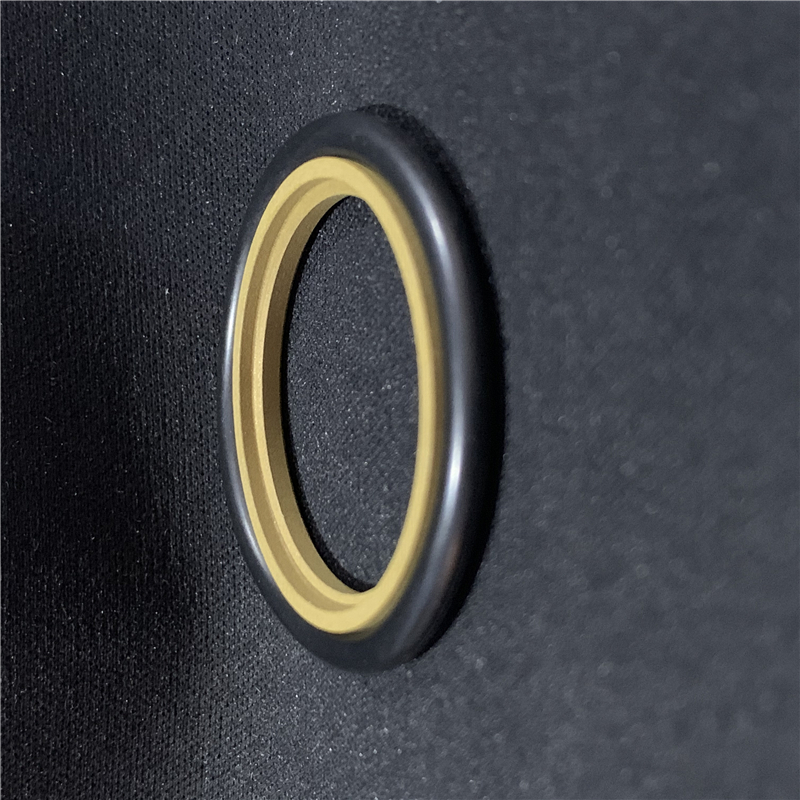

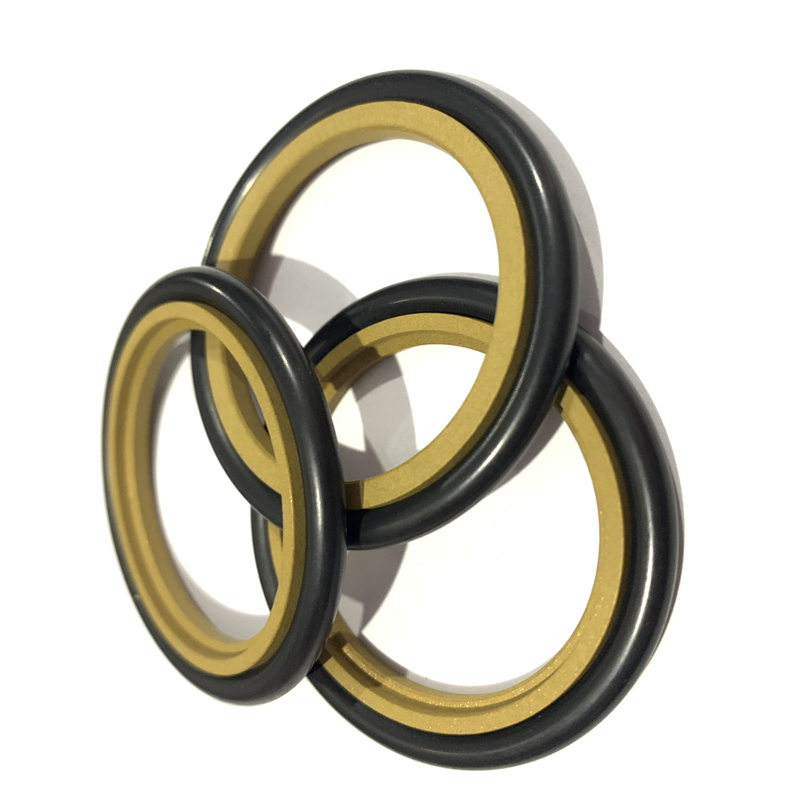

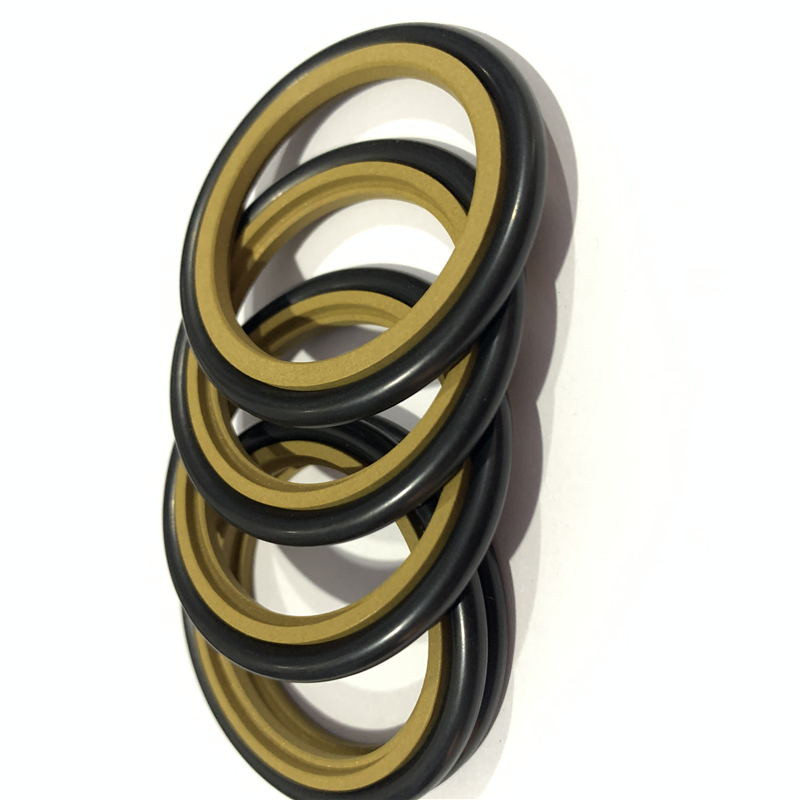

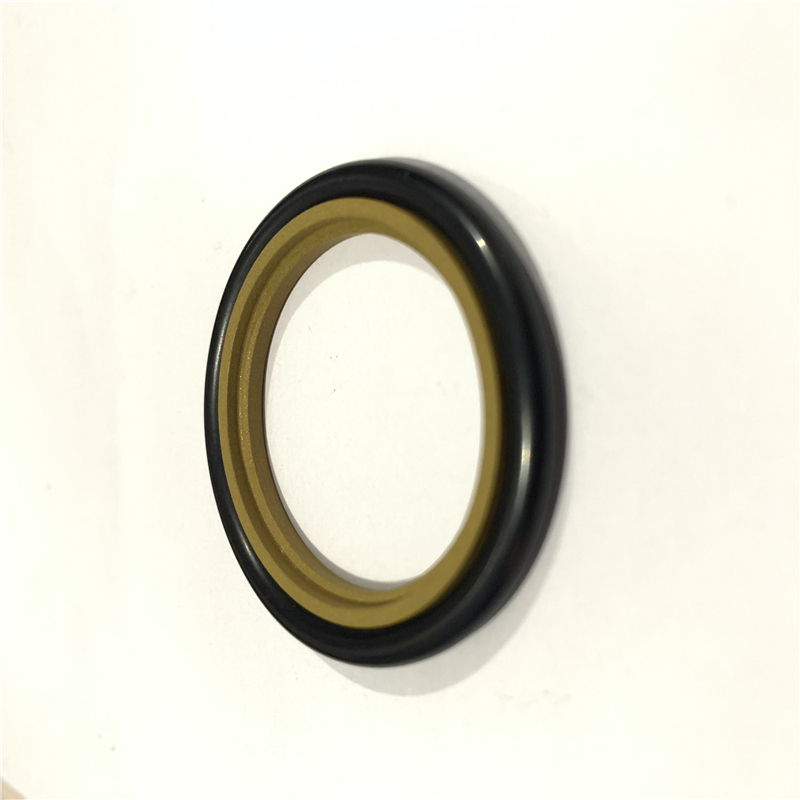

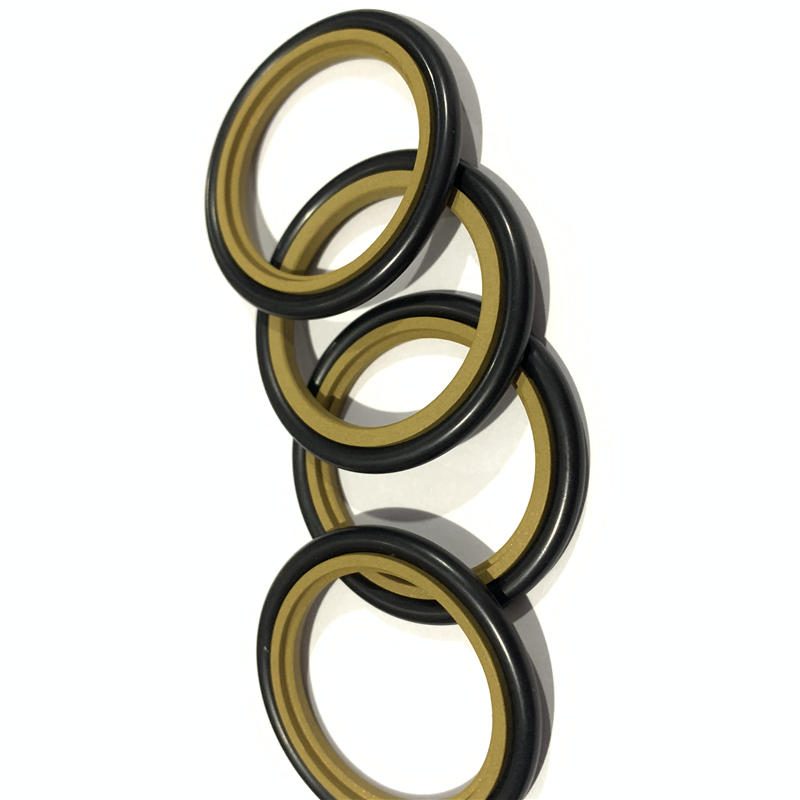

名称：轴用斯特封
所属类别：HALLITE系列
欢迎拨打咨询热线：0538-8999987
工作温度：-30℃+110℃
材质：PTFE+NBR（橡胶）/FKM（氟胶）
产品说明：轴用密封，斯特封适用于液压缸活塞杆用密封，是单作用密封，斯特封具有摩擦力低无爬行启动力小耐高压，沟槽结构简单等优点。
如有特殊需求，加工定做，请与本公司业务部联系，为您提供更好、更详细的咨询服务。（表格内为部分尺寸）
| 产品编号 | 密封圈公制尺寸 | 产品编号 | 密封圈公制尺寸 |
| d | D | h | d | D | h |
| R16 | 8.0 | 15.5 | 3.2 | R16 | 155.0 | 170.5 | 6.3 |
| R16 | 8.0 | 12.9 | 3.2 | R16 | 155.0 | 176.0 | 8.1 |
| R16 | 10.0 | 17.5 | 3.2 | R16 | 160.0 | 175.5 | 6.3 |
| R16 | 10.0 | 14.9 | 2.2 | R16 | 160.0 | 181.0 | 8.1 |
| R16 | 12.0 | 19.5 | 3.2 | R16 | 170.0 | 185.5 | 6.3 |
| R16 | 12.0 | 16.9 | 2.2 | R16 | 170.0 | 191.0 | 8.1 |
| R16 | 14.0 | 21.5 | 3.2 | R16 | 180.0 | 195.5 | 6.3 |
| R16 | 14.0 | 18.9 | 2.2 | R16 | 180.0 | 201.0 | 8.1 |
| R16 | 15.0 | 22.5 | 3.2 | R16 | 190.0 | 205.5 | 6.3 |
| R16 | 15.0 | 19.9 | 2.2 | R16 | 190.0 | 211.0 | 8.1 |
| R16 | 16.0 | 23.5 | 3.2 | R16 | 200.0 | 215.5 | 6.3 |
| R16 | 16.0 | 20.9 | 2.2 | R16 | 200.0 | 221.0 | 8.1 |
| R16 | 18.0 | 25.5 | 3.2 | R16 | 200.0 | 224.5 | 8.1 |
| R16 | 18.0 | 22.9 | 2.2 | R16 | 210.0 | 231.0 | 8.1 |
| R16 | 20.0 | 31.0 | 4.2 | R16 | 210.0 | 234.5 | 8.1 |
| R16 | 20.0 | 27.5 | 3.2 | R16 | 220.0 | 241.0 | 8.1 |
| R16 | 22.0 | 29.5 | 3.2 | R16 | 220.0 | 244.5 | 8.1 |
| R16 | 22.0 | 33.0 | 4.2 | R16 | 225.0 | 246.0 | 8.1 |
| R16 | 25.0 | 36.0 | 4.2 | R16 | 225.0 | 249.5 | 8.1 |
| R16 | 25.0 | 32.5 | 3.2 | R16 | 240.0 | 261.0 | 8.1 |
| R16 | 28.0 | 39.0 | 4.2 | R16 | 240.0 | 264.5 | 8.1 |
| R16 | 28.0 | 35.5 | 3.2 | R16 | 250.0 | 271.0 | 8.1 |
| R16 | 30.0 | 41.0 | 4.2 | R16 | 250.0 | 274.5 | 8.1 |
| R16 | 30.0 | 37.5 | 3.2 | R16 | 260.0 | 284.5 | 8.1 |
| R16 | 32.0 | 43.0 | 4.2 | R16 | 260.0 | 288.0 | 9.5 |
| R16 | 32.0 | 39.5 | 3.2 | R16 | 270.0 | 294.5 | 8.1 |
| R16 | 35.0 | 46.0 | 4.2 | R16 | 270.0 | 298.0 | 9.5 |
| R16 | 35.0 | 42.5 | 3.2 | R16 | 280.0 | 304.5 | 8.1 |
| R16 | 36.0 | 47.0 | 4.2 | R16 | 280.0 | 308.0 | 9.5 |
| R16 | 36.0 | 43.5 | 3.2 | R16 | 290.0 | 314.5 | 8.1 |
| R16 | 40.0 | 51.0 | 4.2 | R16 | 290.0 | 318.0 | 9.5 |
| R16 | 40.0 | 55.5 | 6.3 | R16 | 300.0 | 324.5 | 8.1 |
| R16 | 43.0 | 58.5 | 6.3 | R16 | 300.0 | 328.0 | 9.5 |
| R16 | 42.0 | 53.0 | 4.2 | R16 | 320.0 | 344.5 | 8.1 |
| R16 | 45.0 | 56.0 | 4.2 | R16 | 320.0 | 348.0 | 9.5 |
| R16 | 45.0 | 60.5 | 6.3 | R16 | 330.0 | 354.5 | 8.1 |
| R16 | 50.0 | 65.5 | 6.3 | R16 | 330.0 | 358.0 | 9.5 |
| R16 | 50.0 | 61.0 | 4.2 | R16 | 340.0 | 364.5 | 8.1 |
| R16 | 55.0 | 70.5 | 6.3 | R16 | 340.0 | 368.0 | 9.5 |
| R16 | 55.0 | 66.0 | 4.2 | R16 | 350.0 | 374.5 | 8.1 |
| R16 | 56.0 | 71.5 | 6.3 | R16 | 350.0 | 378.0 | 9.5 |
| R16 | 56.0 | 67.0 | 4.2 | R16 | 360.0 | 384.5 | 8.1 |
| R16 | 56.0 | 77.0 | 8.1 | R16 | 360.0 | 388.0 | 9.5 |
| R16 | 60.0 | 75.5 | 6.3 | R16 | 370.0 | 394.5 | 8.1 |
| R16 | 60.0 | 71.0 | 4.2 | R16 | 370.0 | 398.0 | 9.5 |
| R16 | 60.0 | 81.0 | 8.1 | R16 | 380.0 | 404.5 | 8.1 |
| R16 | 63.0 | 78.5 | 6.3 | R16 | 380.0 | 408.0 | 9.5 |
| R16 | 63.0 | 74.0 | 4.2 | R16 | 390.0 | 414.5 | 8.1 |
| R16 | 63.0 | 84.0 | 8.1 | R16 | 390.0 | 418.0 | 9.5 |
| R16 | 65.0 | 80.5 | 6.3 | R16 | 400.0 | 424.5 | 8.1 |
| R16 | 65.0 | 76.0 | 4.2 | R16 | 400.0 | 428.0 | 9.5 |
| R16 | 65.0 | 86.0 | 8.1 | R16 | 410.0 | 434.5 | 8.1 |
| R16 | 70.0 | 81.0 | 4.2 | R16 | 410.0 | 438.0 | 9.5 |
| R16 | 70.0 | 85.5 | 6.3 | R16 | 420.0 | 444.5 | 8.1 |
| R16 | 70.0 | 91.0 | 8.1 | R16 | 420.0 | 448.0 | 9.5 |
| R16 | 75.0 | 90.5 | 6.3 | R16 | 450.0 | 474.5 | 8.1 |
| R16 | 75.0 | 96.0 | 8.1 | R16 | 450.0 | 478.0 | 9.5 |
| R16 | 78.0 | 93.5 | 6.3 | R16 | 460.0 | 484.5 | 8.1 |
| R16 | 78.0 | 99.0 | 8.1 | R16 | 460.0 | 488.0 | 9.5 |
| R16 | 80.0 | 95.5 | 6.3 | R16 | 480.0 | 504.5 | 8.1 |
| R16 | 80.0 | 101.0 | 8.1 | R16 | 480.0 | 508.0 | 9.5 |
| R16 | 85.0 | 100.5 | 6.3 | R16 | 500.0 | 524.5 | 8.1 |
| R16 | 85.0 | 106.0 | 8.1 | R16 | 500.0 | 528.0 | 9.5 |
| R16 | 90.0 | 105.5 | 6.3 | R16 | 520.0 | 544.5 | 8.1 |
| R16 | 90.0 | 111.0 | 8.1 | R16 | 520.0 | 548.0 | 9.5 |
| R16 | 95.0 | 110.5 | 6.3 | R16 | 550.0 | 574.5 | 8.1 |
| R16 | 95.0 | 116.0 | 8.1 | R16 | 550.0 | 578.0 | 9.5 |
| R16 | 97.0 | 112.5 | 6.3 | R16 | 560.0 | 584.5 | 8.1 |
| R16 | 97.0 | 118.0 | 8.1 | R16 | 560.0 | 588.0 | 9.5 |
| R16 | 100.0 | 115.5 | 6.3 | R16 | 590.0 | 614.5 | 8.1 |
| R16 | 100.0 | 121.0 | 8.1 | R16 | 590.0 | 618.0 | 9.5 |
| R16 | 105.0 | 120.5 | 6.3 | R16 | 600.0 | 624.5 | 8.1 |
| R16 | 105.0 | 126.0 | 8.1 | R16 | 600.0 | 628.0 | 9.5 |
| R16 | 110.0 | 125.5 | 6.3 | R16 | 625.0 | 649.5 | 8.1 |
| R16 | 110.0 | 131.0 | 8.1 | R16 | 625.0 | 653.0 | 9.5 |
| R16 | 115.0 | 130.5 | 6.3 | R16 | 650.0 | 678.0 | 9.5 |
| R16 | 115.0 | 136.0 | 8.1 | R16 | 700.0 | 728.0 | 9.5 |
| R16 | 120.0 | 135.5 | 6.3 | R16 | 750.0 | 778.0 | 9.5 |
| R16 | 120.0 | 141.0 | 8.1 | R16 | 800.0 | 828.0 | 9.5 |
| R16 | 125.0 | 140.5 | 6.3 | R16 | 850.0 | 878.0 | 9.5 |
| R16 | 125.0 | 146.0 | 8.1 | R16 | 900.0 | 928.0 | 9.5 |
| R16 | 130.0 | 145.5 | 6.3 | R16 | 950.0 | 978.0 | 9.5 |
| R16 | 130.0 | 151.0 | 8.1 | R16 | 1000.0 | 1038.0 | 13.8 |
| R16 | 135.0 | 150.5 | 6.3 | R16 | 1050.0 | 1088.0 | 13.8 |
| R16 | 135.0 | 156.0 | 8.1 | R16 | 1100.0 | 1138.0 | 13.8 |
| R16 | 140.0 | 155.5 | 6.3 | R16 | 1150.0 | 1188.0 | 13.8 |
| R16 | 140.0 | 161.0 | 8.1 | R16 | 1200.0 | 1238.0 | 13.8 |
| R16 | 145.0 | 160.5 | 6.3 | R16 | 1250.0 | 1288.0 | 13.8 |
| R16 | 145.0 | 166.0 | 8.1 | R16 | 1300.0 | 1338.0 | 13.8 |
| R16 | 150.0 | 165.5 | 6.3 | R16 | 1350.0 | 1388.0 | 13.8 |
| R16 | 150.0 | 171.0 | 8.1 |
|
|
|
|
| 产品编号 | 密封圈公制尺寸 | 产品编号 | 密封圈公制尺寸 |
| d | D | h | d | D | h |
| R16 | 0.312 | 0.505 | 0.087 | R16 | 3.875 | 4.296 | 0.165 |
| R16 | 0.312 | 0.599 | 0.126 | R16 | 3.875 | 4.469 | 0.248 |
| R16 | 0.312 | 0.733 | 0.165 | R16 | 3.875 | 4.682 | 0.319 |
| R16 | 0.375 | 0.568 | 0.087 | R16 | 4.000 | 4.421 | 0.165 |
| R16 | 0.375 | 0.662 | 0.126 | R16 | 4.000 | 4.594 | 0.248 |
| R16 | 0.375 | 0.796 | 0.165 | R16 | 4.000 | 4.807 | 0.319 |
| R16 | 0.437 | 0.630 | 0.087 | R16 | 4.125 | 4.546 | 0.165 |
| R16 | 0.437 | 0.724 | 0.126 | R16 | 4.125 | 4.719 | 0.248 |
| R16 | 0.437 | 0.858 | 0.165 | R16 | 4.125 | 4.932 | 0.319 |
| R16 | 0.500 | 0.693 | 0.087 | R16 | 4.250 | 4.671 | 0.165 |
| R16 | 0.500 | 0.787 | 0.126 | R16 | 4.250 | 4.844 | 0.248 |
| R16 | 0.500 | 0.921 | 0.165 | R16 | 4.250 | 5.057 | 0.319 |
| R16 | 0.562 | 0.755 | 0.087 | R16 | 4.375 | 4.796 | 0.165 |
| R16 | 0.562 | 0.850 | 0.126 | R16 | 4.375 | 4.969 | 0.248 |
| R16 | 0.562 | 0.983 | 0.165 | R16 | 4.375 | 5.182 | 0.319 |
| R16 | 0.625 | 0.818 | 0.087 | R16 | 4.500 | 4.921 | 0.165 |
| R16 | 0.625 | 0.912 | 0.126 | R16 | 4.500 | 5.094 | 0.248 |
| R16 | 0.625 | 1.046 | 0.165 | R16 | 4.500 | 5.307 | 0.319 |
| R16 | 0.687 | 0.880 | 0.087 | R16 | 4.625 | 5.046 | 0.165 |
| R16 | 0.687 | 0.975 | 0.126 | R16 | 4.625 | 5.219 | 0.248 |
| R16 | 0.687 | 1.108 | 0.165 | R16 | 4.625 | 5.432 | 0.319 |
| R16 | 0.750 | 1.037 | 0.126 | R16 | 4.750 | 5.171 | 0.165 |
| R16 | 0.750 | 1.171 | 0.165 | R16 | 4.750 | 5.344 | 0.248 |
| R16 | 0.750 | 1.344 | 0.248 | R16 | 4.750 | 5.557 | 0.319 |
| R16 | 0.812 | 1.099 | 0.126 | R16 | 4.875 | 5.296 | 0.165 |
| R16 | 0.812 | 1.234 | 0.165 | R16 | 4.875 | 5.469 | 0.248 |
| R16 | 0.812 | 1.406 | 0.248 | R16 | 4.875 | 5.682 | 0.319 |
| R16 | 0.875 | 1.162 | 0.126 | R16 | 5.000 | 5.421 | 0.165 |
| R16 | 0.875 | 1.296 | 0.165 | R16 | 5.000 | 5.594 | 0.248 |
| R16 | 0.875 | 1.469 | 0.248 | R16 | 5.000 | 5.807 | 0.319 |
| R16 | 0.937 | 1.224 | 0.126 | R16 | 5.125 | 5.546 | 0.165 |
| R16 | 0.937 | 1.359 | 0.165 | R16 | 5.125 | 5.719 | 0.248 |
| R16 | 0.937 | 1.531 | 0.248 | R16 | 5.125 | 5.932 | 0.319 |
| R16 | 1.000 | 1.287 | 0.126 | R16 | 5.250 | 5.671 | 0.165 |
| R16 | 1.000 | 1.421 | 0.165 | R16 | 5.250 | 5.844 | 0.248 |
| R16 | 1.000 | 1.594 | 0.248 | R16 | 5.250 | 6.057 | 0.319 |
| R16 | 1.062 | 1.349 | 0.126 | R16 | 5.375 | 5.796 | 0.165 |
| R16 | 1.062 | 1.484 | 0.165 | R16 | 5.375 | 5.969 | 0.248 |
| R16 | 1.062 | 1.656 | 0.248 | R16 | 5.375 | 6.182 | 0.319 |
| R16 | 1.125 | 1.412 | 0.126 | R16 | 5.500 | 5.921 | 0.165 |
| R16 | 1.125 | 1.546 | 0.165 | R16 | 5.500 | 6.094 | 0.248 |
| R16 | 1.125 | 1.713 | 0.248 | R16 | 5.500 | 6.307 | 0.319 |
| R16 | 1.187 | 1.474 | 0.126 | R16 | 5.625 | 6.046 | 0.165 |
| R16 | 1.187 | 1.608 | 0.165 | R16 | 5.625 | 6.219 | 0.248 |
| R16 | 1.187 | 1.781 | 0.248 | R16 | 5.625 | 6.432 | 0.319 |
| R16 | 1.250 | 1.537 | 0.126 | R16 | 5.750 | 6.171 | 0.165 |
| R16 | 1.250 | 1.671 | 0.165 | R16 | 5.750 | 6.344 | 0.248 |
| R16 | 1.250 | 1.844 | 0.248 | R16 | 5.750 | 6.557 | 0.319 |
| R16 | 1.312 | 1.599 | 0.126 | R16 | 6.000 | 6.421 | 0.165 |
| R16 | 1.312 | 1.733 | 0.165 | R16 | 6.000 | 6.594 | 0.248 |
| R16 | 1.312 | 1.906 | 0.248 | R16 | 6.000 | 6.807 | 0.319 |
| R16 | 1.375 | 1.662 | 0.126 | R16 | 6.250 | 6.671 | 0.165 |
| R16 | 1.375 | 1.796 | 0.165 | R16 | 6.250 | 6.844 | 0.248 |
| R16 | 1.375 | 1.969 | 0.248 | R16 | 6.250 | 7.057 | 0.319 |
| R16 | 1.437 | 1.724 | 0.126 | R16 | 6.500 | 6.921 | 0.165 |
| R16 | 1.437 | 1.858 | 0.165 | R16 | 6.500 | 7.094 | 0.248 |
| R16 | 1.437 | 2.031 | 0.248 | R16 | 6.500 | 7.307 | 0.319 |
| R16 | 1.500 | 1.787 | 0.126 | R16 | 6.750 | 7.171 | 0.165 |
| R16 | 1.500 | 1.921 | 0.165 | R16 | 6.750 | 7.344 | 0.248 |
| R16 | 1.500 | 2.094 | 0.248 | R16 | 6.750 | 7.557 | 0.319 |
| R16 | 1.562 | 1.983 | 0.165 | R16 | 7.000 | 7.421 | 0.165 |
| R16 | 1.562 | 2.156 | 0.248 | R16 | 7.000 | 7.594 | 0.248 |
| R16 | 1.562 | 2.396 | 0.319 | R16 | 7.000 | 7.807 | 0.319 |
| R16 | 1.625 | 2.046 | 0.165 | R16 | 7.250 | 7.671 | 0.165 |
| R16 | 1.625 | 2.219 | 0.248 | R16 | 7.250 | 7.844 | 0.248 |
| R16 | 1.625 | 2.432 | 0.319 | R16 | 7.250 | 8.057 | 0.319 |
| R16 | 1.687 | 2.108 | 0.165 | R16 | 7.500 | 7.921 | 0.165 |
| R16 | 1.687 | 2.281 | 0.248 | R16 | 7.500 | 8.094 | 0.248 |
| R16 | 1.687 | 2.494 | 0.319 | R16 | 7.500 | 8.307 | 0.319 |
| R16 | 1.750 | 2.171 | 0.165 | R16 | 7.750 | 8.171 | 0.165 |
| R16 | 1.750 | 2.344 | 0.248 | R16 | 7.750 | 8.344 | 0.248 |
| R16 | 1.750 | 2.557 | 0.319 | R16 | 7.750 | 8.557 | 0.319 |
| R16 | 1.812 | 2.233 | 0.165 | R16 | 8.000 | 8.594 | 0.248 |
| R16 | 1.812 | 2.406 | 0.248 | R16 | 8.000 | 8.807 | 0.319 |
| R16 | 1.812 | 2.619 | 0.319 | R16 | 8.000 | 8.945 | 0.319 |
| R16 | 1.875 | 2.296 | 0.165 | R16 | 8.250 | 8.844 | 0.248 |
| R16 | 1.875 | 2.469 | 0.248 | R16 | 8.250 | 9.057 | 0.319 |
| R16 | 1.875 | 2.682 | 0.319 | R16 | 8.250 | 9.195 | 0.319 |
| R16 | 1.937 | 2.358 | 0.165 | R16 | 8.500 | 9.094 | 0.248 |
| R16 | 1.937 | 2.531 | 0.248 | R16 | 8.500 | 9.307 | 0.319 |
| R16 | 1.937 | 2.744 | 0.319 | R16 | 8.500 | 9.445 | 0.319 |
| R16 | 2.000 | 2.421 | 0.165 | R16 | 8.750 | 9.344 | 0.248 |
| R16 | 2.000 | 2.594 | 0.248 | R16 | 8.750 | 9.557 | 0.319 |
| R16 | 2.000 | 2.807 | 0.319 | R16 | 8.750 | 9.695 | 0.319 |
| R16 | 2.125 | 2.546 | 0.165 | R16 | 9.000 | 9.594 | 0.248 |
| R16 | 2.125 | 2.719 | 0.248 | R16 | 9.000 | 9.807 | 0.319 |
| R16 | 2.125 | 2.932 | 0.319 | R16 | 9.000 | 9.945 | 0.319 |
| R16 | 2.250 | 2.671 | 0.165 | R16 | 9.250 | 9.844 | 0.248 |
| R16 | 2.250 | 2.844 | 0.248 | R16 | 9.250 | 10.057 | 0.319 |
| R16 | 2.250 | 3.057 | 0.319 | R16 | 9.250 | 10.195 | 0.319 |
| R16 | 2.375 | 2.796 | 0.165 | R16 | 9.500 | 10.094 | 0.248 |
| R16 | 2.375 | 2.969 | 0.248 | R16 | 9.500 | 10.307 | 0.319 |
| R16 | 2.375 | 3.182 | 0.319 | R16 | 9.500 | 10.445 | 0.319 |
| R16 | 2.500 | 2.921 | 0.165 | R16 | 9.750 | 10.344 | 0.248 |
| R16 | 2.500 | 3.094 | 0.248 | R16 | 9.750 | 10.557 | 0.319 |
| R16 | 2.500 | 3.307 | 0.319 | R16 | 9.750 | 10.695 | 0.319 |
| R16 | 2.625 | 3.046 | 0.165 | R16 | 10.000 | 10.807 | 0.319 |
| R16 | 2.625 | 3.219 | 0.248 | R16 | 10.000 | 10.945 | 0.319 |
| R16 | 2.625 | 3.432 | 0.319 | R16 | 10.000 | 11.075 | 0.374 |
| R16 | 2.750 | 3.171 | 0.165 | R16 | 10.500 | 11.307 | 0.319 |
| R16 | 2.750 | 3.344 | 0.248 | R16 | 10.500 | 11.445 | 0.319 |
| R16 | 2.750 | 3.557 | 0.319 | R16 | 10.500 | 11.575 | 0.374 |
| R16 | 2.875 | 3.296 | 0.165 | R16 | 11.000 | 11.807 | 0.319 |
| R16 | 2.875 | 3.469 | 0.248 | R16 | 11.000 | 11.945 | 0.319 |
| R16 | 2.875 | 3.682 | 0.319 | R16 | 11.000 | 12.075 | 0.374 |
| R16 | 3.000 | 3.421 | 0.165 | R16 | 11.500 | 12.307 | 0.319 |
| R16 | 3.000 | 3.594 | 0.248 | R16 | 11.500 | 12.445 | 0.319 |
| R16 | 3.000 | 3.807 | 0.319 | R16 | 11.500 | 12.575 | 0.374 |
| R16 | 3.125 | 3.546 | 0.165 | R16 | 12.000 | 12.945 | 0.319 |
| R16 | 3.125 | 3.719 | 0.248 | R16 | 12.500 | 13.445 | 0.319 |
| R16 | 3.125 | 3.932 | 0.319 | R16 | 12.500 | 13.575 | 0.374 |
| R16 | 3.250 | 3.671 | 0.165 | R16 | 13.000 | 13.945 | 0.319 |
| R16 | 3.250 | 3.844 | 0.248 | R16 | 13.500 | 14.445 | 0.319 |
| R16 | 3.250 | 4.057 | 0.319 | R16 | 14.000 | 14.945 | 0.319 |
| R16 | 3.375 | 3.796 | 0.165 | R16 | 14.500 | 15.445 | 0.319 |
| R16 | 3.375 | 3.969 | 0.248 | R16 | 15.000 | 15.945 | 0.319 |
| R16 | 3.375 | 4.182 | 0.319 | R16 | 15.500 | 16.445 | 0.319 |
| R16 | 3.500 | 3.921 | 0.165 | R16 | 16.000 | 16.945 | 0.319 |
| R16 | 3.500 | 4.094 | 0.248 | R16 | 16.500 | 17.445 | 0.319 |
| R16 | 3.500 | 4.307 | 0.319 | R16 | 17.000 | 17.945 | 0.319 |
| R16 | 3.625 | 4.046 | 0.165 | R16 | 17.500 | 18.445 | 0.319 |
| R16 | 3.625 | 4.219 | 0.248 | R16 | 18.000 | 18.945 | 0.319 |
| R16 | 3.625 | 4.432 | 0.319 | R16 | 18.500 | 19.445 | 0.319 |
| R16 | 3.750 | 4.171 | 0.165 | R16 | 19.000 | 19.945 | 0.319 |
| R16 | 3.750 | 4.344 | 0.248 | R16 | 19.500 | 20.445 | 0.319 |
| R16 | 3.750 | 4.557 | 0.319 | R16 | 20.000 | 20.945 | 0.319 |
