名称：孔用密封 格莱圈
所属类别：HALLITE系列
欢迎拨打咨询热线：0538-8999987
工作温度：-30℃+110℃
材质：PTFE+NBR（橡胶）FKM（氟胶）

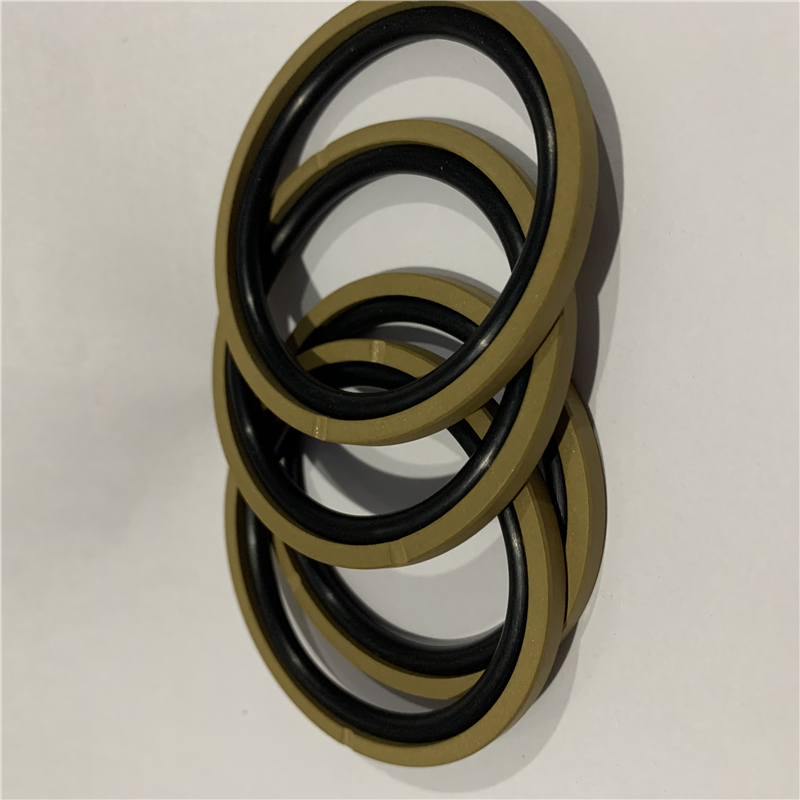

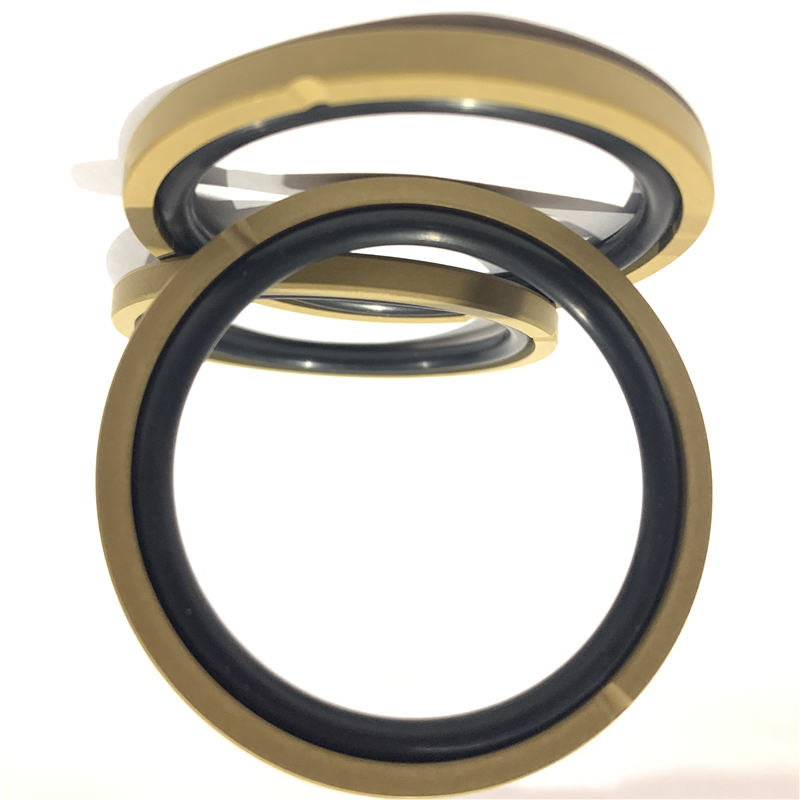

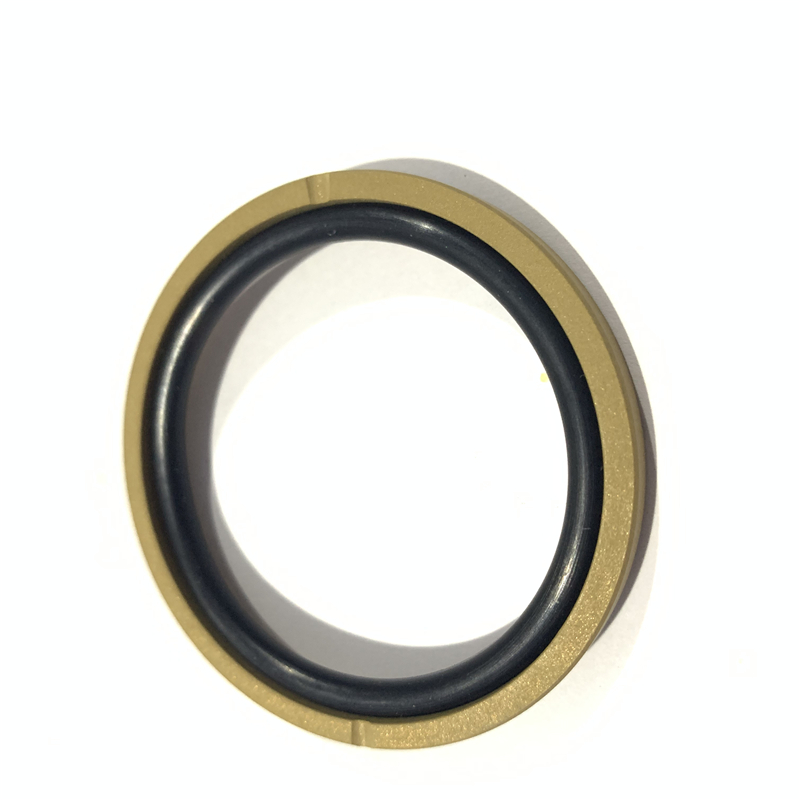

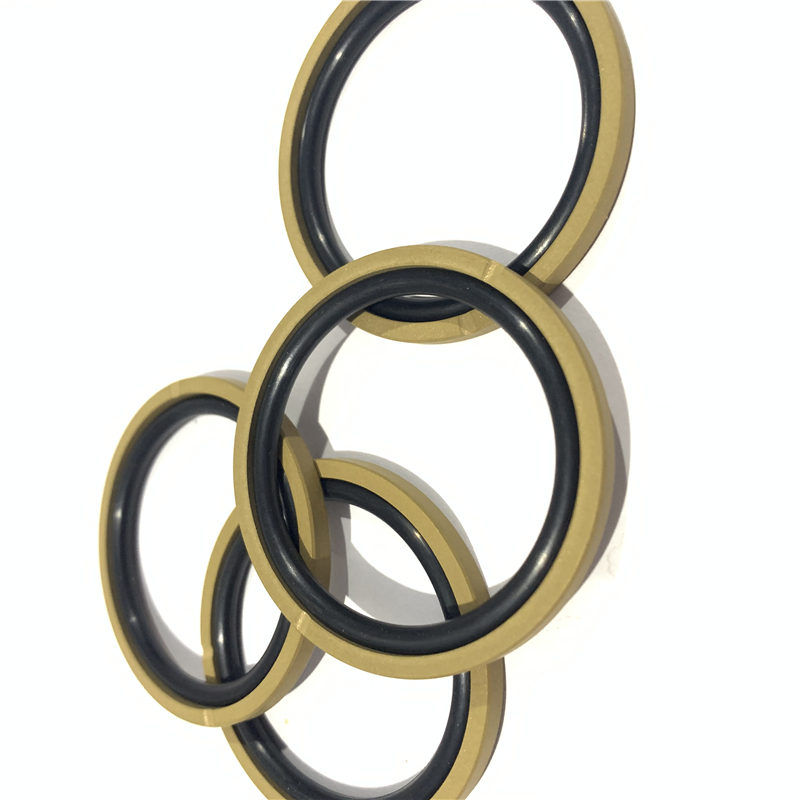

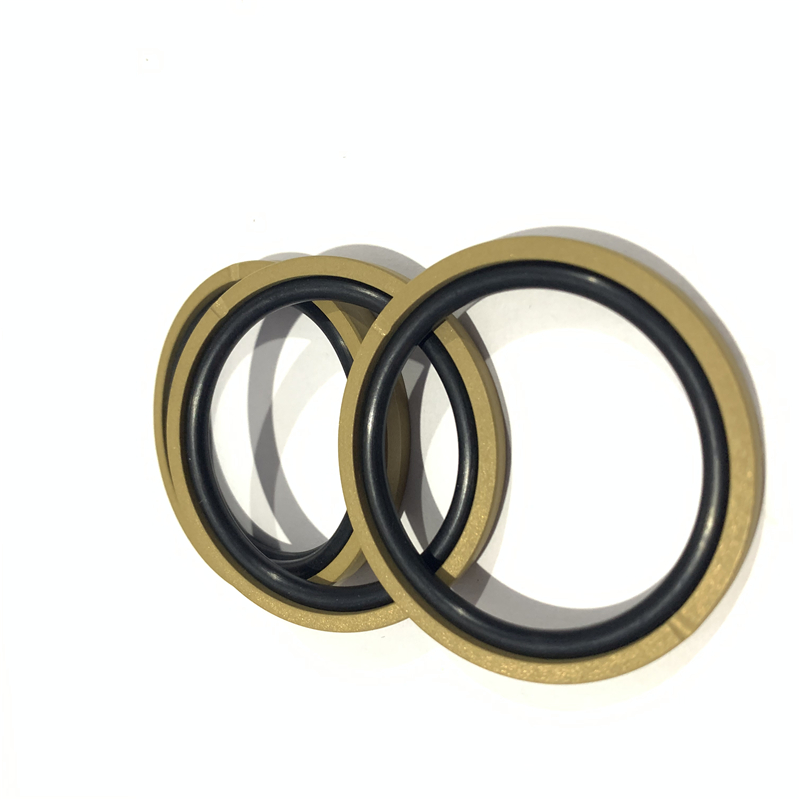

产品说明：格莱圈由O型圈与PTFE环组成，这样组合可以在轻载、重载环境下的液压油缸提供了紧凑、低摩擦力的密封效果，无爬行现象。
如有特殊需求，加工定做，请与本公司业务部联系，为您提供更好、更详细的咨询服务。（表格内为部分尺寸）
| 产品编号 | 密封圈公制尺寸 | 产品编号 | 密封圈公制尺寸 |
| d | D | h | d | D | h |
| P54 | 8.0 | 3.1 | 2.2 | P54 | 127.0 | 111.5 | 6.3 |
| P54 | 10.0 | 5.1 | 2.2 | P54 | 130.0 | 114.5 | 6.3 |
| P54 | 12.0 | 7.1 | 2.2 | P54 | 130.0 | 109.0 | 8.1 |
| P54 | 14.0 | 9.1 | 2.2 | P54 | 132.0 | 121.0 | 4.2 |
| P54 | 15.0 | 7.5 | 3.2 | P54 | 135.0 | 114.0 | 8.1 |
| P54 | 16.0 | 11.1 | 2.2 | P54 | 140.0 | 124.5 | 6.3 |
| P54 | 16.0 | 8.5 | 3.2 | P54 | 140.0 | 119.0 | 8.1 |
| P54 | 18.0 | 13.1 | 2.2 | P54 | 145.0 | 129.5 | 6.3 |
| P54 | 18.0 | 10.5 | 3.2 | P54 | 145.0 | 124.0 | 8.1 |
| P54 | 20.0 | 15.1 | 2.2 | P54 | 150.0 | 134.5 | 6.3 |
| P54 | 20.0 | 12.5 | 3.2 | P54 | 150.0 | 129.0 | 8.1 |
| P54 | 21.0 | 13.5 | 3.2 | P54 | 155.0 | 134.0 | 8.1 |
| P54 | 22.0 | 17.1 | 2.2 | P54 | 160.0 | 144.5 | 6.3 |
| P54 | 22.0 | 14.5 | 3.2 | P54 | 160.0 | 139.0 | 8.1 |
| P54 | 24.0 | 16.5 | 3.2 | P54 | 165.0 | 144.0 | 8.1 |
| P54 | 24.0 | 19.1 | 2.2 | P54 | 170.0 | 149.0 | 8.1 |
| P54 | 25.0 | 20.1 | 2.2 | P54 | 175.0 | 154.0 | 8.1 |
| P54 | 25.0 | 17.5 | 3.2 | P54 | 180.0 | 164.5 | 6.3 |
| P54 | 25.0 | 14.0 | 4.2 | P54 | 180.0 | 159.0 | 8.1 |
| P54 | 28.0 | 20.5 | 3.2 | P54 | 185.0 | 164.0 | 8.1 |
| P54 | 30.0 | 22.5 | 3.2 | P54 | 190.0 | 169.0 | 8.1 |
| P54 | 32.0 | 27.1 | 2.2 | P54 | 194.0 | 178.5 | 6.3 |
| P54 | 32.0 | 24.5 | 3.2 | P54 | 200.0 | 184.5 | 6.3 |
| P54 | 32.0 | 21.0 | 4.2 | P54 | 200.0 | 179.0 | 8.1 |
| P54 | 35.0 | 27.5 | 3.2 | P54 | 205.0 | 184.0 | 8.1 |
| P54 | 35.0 | 24.0 | 4.2 | P54 | 210.0 | 189.0 | 8.1 |
| P54 | 36.0 | 28.5 | 3.2 | P54 | 215.0 | 194.0 | 8.1 |
| P54 | 38.0 | 30.5 | 3.2 | P54 | 220.0 | 199.0 | 8.1 |
| P54 | 40.0 | 32.5 | 3.2 | P54 | 225.0 | 204.0 | 8.1 |
| P54 | 40.0 | 29.0 | 4.2 | P54 | 230.0 | 214.5 | 6.3 |
| P54 | 42.0 | 31.0 | 4.2 | P54 | 230.0 | 209.0 | 8.1 |
| P54 | 45.0 | 34.0 | 4.2 | P54 | 240.0 | 219.0 | 8.1 |
| P54 | 48.0 | 37.0 | 4.2 | P54 | 250.0 | 229.0 | 8.1 |
| P54 | 50.0 | 42.5 | 3.2 | P54 | 250.0 | 225.5 | 8.1 |
| P54 | 50.0 | 39.0 | 4.2 | P54 | 250.0 | 234.5 | 6.3 |
| P54 | 50.0 | 34.5 | 6.3 | P54 | 254.0 | 233.0 | 8.1 |
| P54 | 50.8 | 43.3 | 3.2 | P54 | 260.0 | 239.0 | 8.1 |
| P54 | 50.8 | 39.8 | 4.2 | P54 | 265.0 | 244.0 | 8.1 |
| P54 | 52.0 | 41.0 | 4.2 | P54 | 268.0 | 247.0 | 8.1 |
| P54 | 53.0 | 42.0 | 4.2 | P54 | 270.0 | 249.0 | 8.1 |
| P54 | 55.0 | 44.0 | 4.2 | P54 | 280.0 | 259.0 | 8.1 |
| P54 | 57.0 | 46.0 | 4.2 | P54 | 290.0 | 269.0 | 8.1 |
| P54 | 58.0 | 47.0 | 4.2 | P54 | 300.0 | 279.0 | 8.1 |
| P54 | 60.0 | 49.0 | 4.2 | P54 | 300.0 | 275.5 | 8.1 |
| P54 | 62.0 | 51.0 | 4.2 | P54 | 304.8 | 283.8 | 8.1 |
| P54 | 63.0 | 52.0 | 4.2 | P54 | 310.0 | 289.0 | 8.1 |
| P54 | 63.0 | 47.5 | 6.3 | P54 | 320.0 | 299.0 | 8.1 |
| P54 | 65.0 | 54.0 | 4.2 | P54 | 320.0 | 295.5 | 8.1 |
| P54 | 68.0 | 57.0 | 4.2 | P54 | 330.0 | 305.5 | 8.1 |
| P54 | 70.0 | 59.0 | 4.2 | P54 | 340.0 | 315.5 | 8.1 |
| P54 | 70.0 | 54.5 | 6.3 | P54 | 350.0 | 325.5 | 8.1 |
| P54 | 75.0 | 64.0 | 4.2 | P54 | 360.0 | 335.5 | 8.1 |
| P54 | 75.0 | 59.5 | 6.3 | P54 | 370.0 | 345.5 | 8.1 |
| P54 | 80.0 | 69.0 | 4.2 | P54 | 380.0 | 355.5 | 8.1 |
| P54 | 80.0 | 64.5 | 6.3 | P54 | 390.0 | 365.5 | 8.1 |
| P54 | 80.0 | 59.0 | 8.1 | P54 | 400.0 | 375.5 | 8.1 |
| P54 | 82.5 | 67.0 | 6.3 | P54 | 420.0 | 395.5 | 8.1 |
| P54 | 85.0 | 69.5 | 6.3 | P54 | 430.0 | 405.5 | 8.1 |
| P54 | 85.0 | 64.0 | 8.1 | P54 | 440.0 | 415.5 | 8.1 |
| P54 | 90.0 | 79.0 | 4.2 | P54 | 450.0 | 425.5 | 8.1 |
| P54 | 90.0 | 74.5 | 6.3 | P54 | 460.0 | 435.5 | 8.1 |
| P54 | 90.0 | 69.0 | 8.1 | P54 | 480.0 | 455.5 | 8.1 |
| P54 | 95.0 | 84.0 | 4.2 | P54 | 500.0 | 475.5 | 8.1 |
| P54 | 95.0 | 79.5 | 6.3 | P54 | 555.0 | 530.5 | 8.1 |
| P54 | 95.0 | 74.0 | 8.1 | P54 | 600.0 | 575.5 | 8.1 |
| P54 | 100.0 | 89.0 | 4.2 | P54 | 640.0 | 615.5 | 8.1 |
| P54 | 100.0 | 84.5 | 6.3 | P54 | 660.0 | 635.5 | 8.1 |
| P54 | 100.0 | 79.0 | 8.1 | P54 | 700.0 | 672.0 | 9.5 |
| P54 | 101.6 | 86.1 | 6.3 | P54 | 710.0 | 682.0 | 9.5 |
| P54 | 105.0 | 94.0 | 4.2 | P54 | 740.0 | 712.0 | 9.5 |
| P54 | 105.0 | 89.5 | 6.3 | P54 | 780.0 | 752.0 | 9.5 |
| P54 | 108.0 | 92.5 | 6.3 | P54 | 800.0 | 772.0 | 9.5 |
| P54 | 110.0 | 99.0 | 4.2 | P54 | 900.0 | 872.0 | 9.5 |
| P54 | 110.0 | 94.5 | 6.3 | P54 | 1000.0 | 972.0 | 9.5 |
| P54 | 110.0 | 89.0 | 8.1 | P54 | 1000.0 | 962.0 | 13.8 |
| P54 | 115.0 | 99.5 | 6.3 | P54 | 1050.0 | 1022.0 | 9.5 |
| P54 | 120.0 | 109.0 | 4.2 | P54 | 1065.0 | 1027.0 | 13.8 |
| P54 | 120.0 | 104.5 | 6.3 | P54 | 1070.0 | 1032.0 | 13.8 |
| P54 | 120.0 | 99.0 | 8.1 | P54 | 1200.0 | 1172.0 | 9.5 |
| P54 | 125.0 | 114.0 | 4.2 | P54 | 1200.0 | 1162.0 | 13.8 |
| P54 | 125.0 | 109.5 | 6.3 | P54 | 1225.0 | 1187.0 | 13.8 |
| P54 | 125.0 | 104.0 | 8.1 |
|
|
|
|
| 产品编号 | 密封圈公制尺寸 | 产品编号 | 密封圈公制尺寸 |
| d | D | h | d | D | h |
| P54 | 0.500 | 0.307 | 0.087 | P54 | 4.750 | 4.140 | 0.248 |
| P54 | 0.562 | 0.369 | 0.087 | P54 | 4.875 | 4.265 | 0.248 |
| P54 | 0.625 | 0.330 | 0.126 | P54 | 5.000 | 4.390 | 0.248 |
| P54 | 0.687 | 0.392 | 0.126 | P54 | 5.125 | 4.515 | 0.248 |
| P54 | 0.750 | 0.455 | 0.126 | P54 | 5.250 | 4.640 | 0.248 |
| P54 | 0.812 | 0.517 | 0.126 | P54 | 5.375 | 4.548 | 0.319 |
| P54 | 0.875 | 0.580 | 0.126 | P54 | 5.500 | 4.673 | 0.319 |
| P54 | 0.937 | 0.642 | 0.126 | P54 | 5.625 | 4.798 | 0.319 |
| P54 | 1.000 | 0.705 | 0.126 | P54 | 5.750 | 4.923 | 0.319 |
| P54 | 1.062 | 0.767 | 0.126 | P54 | 6.000 | 5.173 | 0.319 |
| P54 | 1.125 | 0.830 | 0.126 | P54 | 6.250 | 5.423 | 0.319 |
| P54 | 1.187 | 0.892 | 0.126 | P54 | 6.500 | 5.673 | 0.319 |
| P54 | 1.250 | 0.955 | 0.126 | P54 | 6.750 | 5.923 | 0.319 |
| P54 | 1.312 | 1.017 | 0.126 | P54 | 7.000 | 6.173 | 0.319 |
| P54 | 1.375 | 1.080 | 0.126 | P54 | 7.250 | 6.423 | 0.319 |
| P54 | 1.437 | 1.142 | 0.126 | P54 | 7.500 | 6.673 | 0.319 |
| P54 | 1.500 | 1.205 | 0.126 | P54 | 7.750 | 6.923 | 0.319 |
| P54 | 1.562 | 1.267 | 0.126 | P54 | 8.000 | 7.173 | 0.319 |
| P54 | 1.625 | 1.192 | 0.165 | P54 | 8.250 | 7.423 | 0.319 |
| P54 | 1.687 | 1.254 | 0.165 | P54 | 8.500 | 7.673 | 0.319 |
| P54 | 1.750 | 1.317 | 0.165 | P54 | 8.750 | 7.923 | 0.319 |
| P54 | 1.812 | 1.379 | 0.165 | P54 | 9.000 | 8.173 | 0.319 |
| P54 | 1.875 | 1.442 | 0.165 | P54 | 9.250 | 8.423 | 0.319 |
| P54 | 1.937 | 1.504 | 0.165 | P54 | 9.500 | 8.673 | 0.319 |
| P54 | 2.000 | 1.567 | 0.165 | P54 | 9.750 | 8.923 | 0.319 |
| P54 | 2.125 | 1.692 | 0.165 | P54 | 10.000 | 9.173 | 0.319 |
| P54 | 2.250 | 1.817 | 0.165 | P54 | 10.500 | 9.673 | 0.319 |
| P54 | 2.375 | 1.942 | 0.165 | P54 | 11.000 | 10.173 | 0.319 |
| P54 | 2.500 | 2.067 | 0.165 | P54 | 11.500 | 10.673 | 0.319 |
| P54 | 2.625 | 2.192 | 0.165 | P54 | 12.000 | 11.173 | 0.319 |
| P54 | 2.750 | 2.317 | 0.165 | P54 | 12.500 | 11.673 | 0.319 |
| P54 | 2.875 | 2.442 | 0.165 | P54 | 13.000 | 12.035 | 0.319 |
| P54 | 3.000 | 2.567 | 0.165 | P54 | 13.500 | 12.535 | 0.319 |
| P54 | 3.125 | 2.692 | 0.165 | P54 | 14.000 | 13.035 | 0.319 |
| P54 | 3.250 | 2.640 | 0.248 | P54 | 14.500 | 13.535 | 0.319 |
| P54 | 3.375 | 2.765 | 0.248 | P54 | 15.000 | 14.035 | 0.319 |
| P54 | 3.500 | 2.890 | 0.248 | P54 | 15.500 | 14.535 | 0.319 |
| P54 | 3.625 | 3.015 | 0.248 | P54 | 16.000 | 15.035 | 0.319 |
| P54 | 3.750 | 3.140 | 0.248 | P54 | 16.500 | 15.535 | 0.319 |
| P54 | 3.875 | 3.265 | 0.248 | P54 | 17.000 | 16.035 | 0.319 |
| P54 | 4.000 | 3.390 | 0.248 | P54 | 17.500 | 16.535 | 0.319 |
| P54 | 4.125 | 3.515 | 0.248 | P54 | 18.000 | 17.035 | 0.319 |
| P54 | 4.250 | 3.640 | 0.248 | P54 | 18.500 | 17.535 | 0.319 |
| P54 | 4.375 | 3.765 | 0.248 | P54 | 19.000 | 18.035 | 0.319 |
| P54 | 4.500 | 3.890 | 0.248 | P54 | 19.500 | 18.535 | 0.319 |
| P54 | 4.625 | 4.015 | 0.248 | P54 | 20.000 | 19.035 | 0.319 |
