产品中心

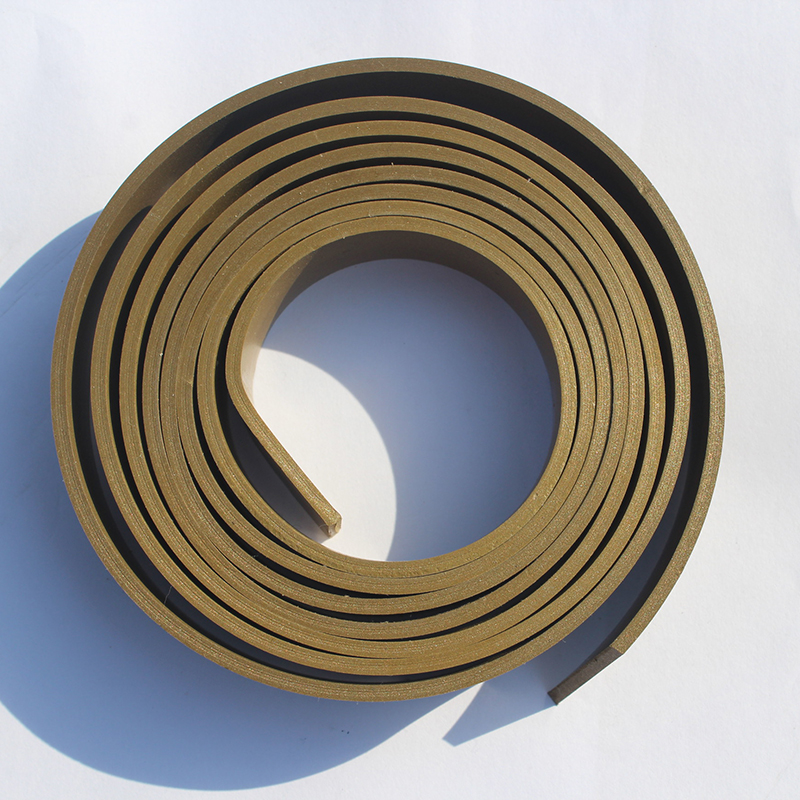

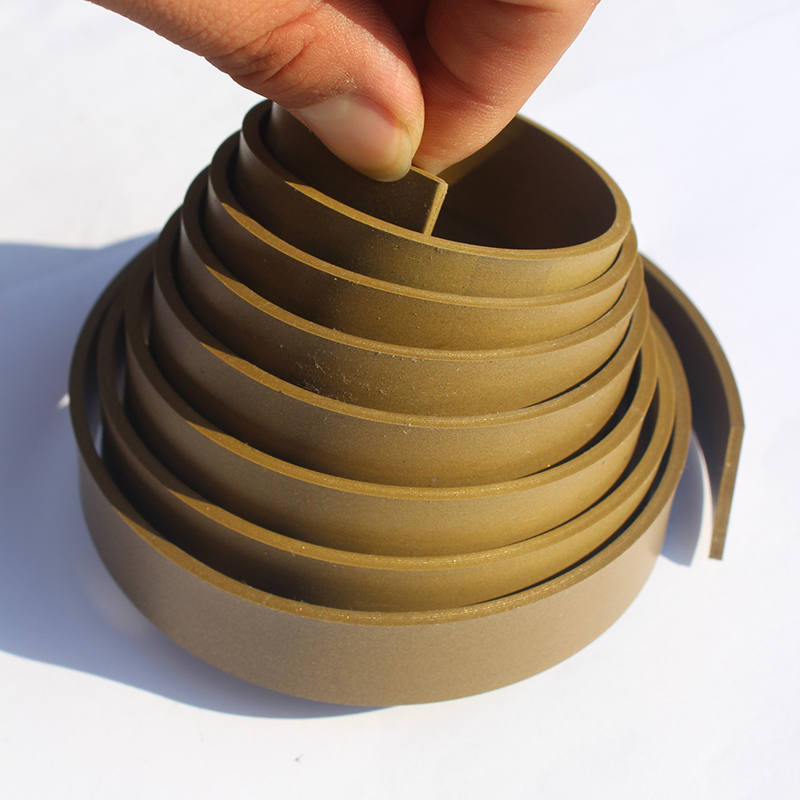

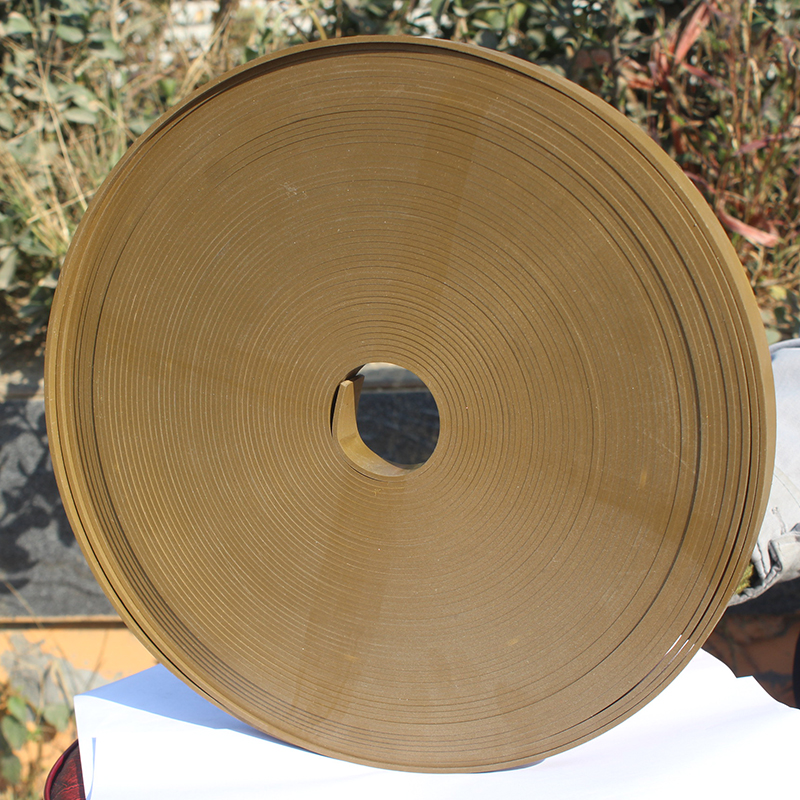

PTFE+铜粉导向带
所属类别：导向带导向环系列
欢迎拨打咨询热线：0538-8930167
产品详情
产品编号 | 密封圈公称尺寸 | 产品编号 | 密封圈公称尺寸 |
d | D | L | d | D | L |
F-DXH-18 | 18 | 23 | 5 | F-DXH-105 | 105 | 110 | 30 |
F-DXH-20 | 20 | 25 | 5 | F-DXH-105 | 105 | 110 | 40 |
F-DXH-20 | 20 | 25 | 10 | F-DXH-110 | 110 | 115 | 10 |
F-DXH-22 | 22 | 27 | 5 | F-DXH-110 | 110 | 115 | 15 |
F-DXH-22 | 22 | 27 | 8 | F-DXH-110 | 110 | 115 | 20 |
F-DXH-20 | 22 | 27 | 10 | F-DXH-110 | 110 | 115 | 25 |
F-DXH-25 | 25 | 30 | 5 | F-DXH-110 | 110 | 115 | 30 |
F-DXH-25 | 25 | 30 | 5.5 | F-DXH-110 | 110 | 115 | 40 |
F-DXH-25 | 25 | 30 | 6 | F-DXH-110 | 110 | 116 | 20 |
F-DXH-25 | 25 | 30 | 7 | F-DXH-110 | 110 | 116 | 25 |
F-DXH-28 | 25 | 30 | 8 | F-DXH-110 | 110 | 116 | 30 |
F-DXH-25 | 25 | 30 | 10 | F-DXH-114 | 114 | 120 | 14 |
F-DXH-27 | 27 | 32 | 5.6 | F-DXH-114 | 114 | 120 | 15 |
F-DXH-28 | 28 | 33 | 5.5 | F-DXH-119 | 119 | 125 | 20 |
F-DXH-28 | 28 | 33 | 7 | F-DXH-120 | 120 | 125 | 10 |
F-DXH-28 | 28 | 33 | 8 | F-DXH-120 | 120 | 125 | 15 |
F-DXH-28 | 28 | 33 | 10 | F-DXH-120 | 120 | 125 | 20 |
F-DXH-28 | 28 | 33 | 15 | F-DXH-120 | 120 | 125 | 25 |
F-DXH-28 | 28 | 33 | 20 | F-DXH-120 | 120 | 125 | 30 |
F-DXH-30 | 30 | 35 | 5.5 | F-DXH-120 | 120 | 126 | 20 |
F-DXH-30 | 30 | 35 | 8 | F-DXH-120 | 120 | 126 | 25 |
F-DXH-30 | 30 | 35 | 10 | F-DXH-120 | 120 | 126 | 30 |
F-DXH-30 | 30 | 35 | 15 | F-DXH-124 | 124 | 130 | 14 |
F-DXH-30 | 30 | 35 | 20 | F-DXH-124 | 124 | 130 | 20 |
F-DXH-32 | 32 | 37 | 5.5 | F-DXH-124 | 124 | 130 | 30 |
F-DXH-32 | 32 | 37 | 8 | F-DXH-125 | 125 | 130 | 10 |
F-DXH-32 | 32 | 37 | 10 | F-DXH-125 | 125 | 130 | 15 |
F-DXH-32 | 32 | 37 | 15 | F-DXH-125 | 125 | 130 | 20 |
F-DXH-32 | 32 | 37 | 20 | F-DXH-125 | 125 | 130 | 25 |
F-DXH-35 | 35 | 40 | 5 | F-DXH-125 | 125 | 130 | 30 |
F-DXH-35 | 35 | 40 | 5.5 | F-DXH-125 | 125 | 130 | 40 |
F-DXH-35 | 35 | 40 | 6 | F-DXH-125 | 125 | 130 | 50 |
F-DXH-35 | 35 | 40 | 7 | F-DXH-130 | 130 | 135 | 10 |
F-DXH-35 | 35 | 40 | 8 | F-DXH-130 | 130 | 135 | 15 |
F-DXH-35 | 35 | 40 | 10 | F-DXH-130 | 130 | 135 | 20 |
F-DXH-35 | 35 | 40 | 15 | F-DXH-134 | 134 | 140 | 20 |
F-DXH-35 | 35 | 40 | 20 | F-DXH-134 | 134 | 140 | 25 |
F-DXH-36 | 36 | 41 | 10 | F-DXH-134 | 134 | 140 | 30 |
F-DXH-36 | 36 | 41 | 15 | F-DXH-135 | 135 | 140 | 10 |
F-DXH-36 | 36 | 41 | 20 | F-DXH-135 | 135 | 140 | 15 |
F-DXH-40 | 40 | 45 | 5.5 | F-DXH-135 | 135 | 140 | 20 |
F-DXH-40 | 40 | 45 | 7 | F-DXH-135 | 135 | 140 | 25 |
F-DXH-40 | 40 | 45 | 8 | F-DXH-135 | 135 | 140 | 30 |
F-DXH-40 | 40 | 45 | 10 | F-DXH-139 | 139 | 145 | 20 |
F-DXH-40 | 40 | 45 | 15 | F-DXH-140 | 140 | 145 | 10 |
F-DXH-40 | 40 | 45 | 20 | F-DXH-140 | 140 | 145 | 15 |
F-DXH-40 | 40 | 45 | 25 | F-DXH-140 | 140 | 145 | 20 |
F-DXH-40 | 40 | 45 | 30 | F-DXH-140 | 140 | 145 | 25 |
F-DXH-45 | 45 | 50 | 5.5 | F-DXH-140 | 140 | 145 | 30 |
F-DXH-45 | 45 | 50 | 6 | F-DXH-140 | 140 | 146 | 20 |
F-DXH-45 | 45 | 50 | 7 | F-DXH-140 | 140 | 146 | 30 |
F-DXH-45 | 45 | 50 | 8 | F-DXH-145 | 145 | 150 | 10 |
F-DXH-45 | 45 | 50 | 10 | F-DXH-145 | 145 | 150 | 15 |
F-DXH-45 | 45 | 50 | 15 | F-DXH-145 | 145 | 150 | 20 |
F-DXH-45 | 45 | 50 | 20 | F-DXH-145 | 145 | 150 | 25 |
F-DXH-45 | 45 | 50 | 25 | F-DXH-145 | 145 | 150 | 30 |
F-DXH-45 | 45 | 50 | 30 | F-DXH-149 | 149 | 155 | 20 |
F-DXH-50 | 50 | 55 | 10 | F-DXH-150 | 150 | 155 | 10 |
F-DXH-50 | 50 | 55 | 15 | F-DXH-150 | 150 | 155 | 15 |
F-DXH-50 | 50 | 55 | 20 | F-DXH-150 | 150 | 155 | 20 |
F-DXH-50 | 50 | 55 | 25 | F-DXH-150 | 150 | 155 | 25 |
F-DXH-50 | 50 | 55 | 30 | F-DXH-150 | 150 | 155 | 30 |
F-DXH-55 | 55 | 60 | 10 | F-DXH-150 | 150 | 155 | 40 |
F-DXH-55 | 55 | 60 | 15 | F-DXH-150 | 150 | 156 | 20 |
F-DXH-55 | 55 | 60 | 20 | F-DXH-150 | 150 | 156 | 25 |
F-DXH-55 | 55 | 60 | 25 | F-DXH-150 | 150 | 156 | 30 |
F-DXH-55 | 55 | 60 | 30 | F-DXH-154 | 154 | 160 | 15 |
F-DXH-55 | 55 | 61 | 15 | F-DXH-154 | 154 | 160 | 20 |
F-DXH-57 | 57 | 60 | 10 | F-DXH-154 | 154 | 160 | 25 |
F-DXH-57 | 57 | 63 | 20 | F-DXH-154 | 154 | 160 | 30 |
F-DXH-58 | 58 | 63 | 5 | F-DXH-155 | 155 | 160 | 10 |
F-DXH-58 | 58 | 63 | 6 | F-DXH-155 | 155 | 160 | 15 |
F-DXH-58 | 58 | 63 | 7 | F-DXH-155 | 155 | 160 | 20 |
F-DXH-58 | 58 | 63 | 8 | F-DXH-155 | 155 | 160 | 25 |
F-DXH-58 | 58 | 63 | 10 | F-DXH-155 | 155 | 160 | 30 |
F-DXH-58 | 58 | 63 | 15 | F-DXH-160 | 160 | 165 | 15 |
F-DXH-58 | 58 | 63 | 20 | F-DXH-160 | 160 | 165 | 20 |
F-DXH-58 | 58 | 63 | 25 | F-DXH-160 | 160 | 165 | 30 |
F-DXH-58 | 58 | 63 | 30 | F-DXH-160 | 160 | 165 | 45 |
F-DXH-60 | 60 | 65 | 8 | F-DXH-160 | 160 | 165 | 50 |
F-DXH-60 | 60 | 65 | 10 | F-DXH-160 | 160 | 166 | 20 |
F-DXH-60 | 60 | 65 | 15 | F-DXH-160 | 160 | 166 | 30 |
F-DXH-60 | 60 | 65 | 20 | F-DXH-164 | 164 | 170 | 30 |
F-DXH-60 | 60 | 65 | 25 | F-DXH-165 | 165 | 170 | 15 |
F-DXH-60 | 60 | 65 | 30 | F-DXH-165 | 165 | 170 | 20 |
F-DXH-63 | 63 | 68 | 8 | F-DXH-165 | 165 | 170 | 30 |
F-DXH-63 | 63 | 68 | 10 | F-DXH-170 | 170 | 175 | 15 |
F-DXH-63 | 63 | 68 | 15 | F-DXH-170 | 170 | 175 | 20 |
F-DXH-63 | 63 | 68 | 20 | F-DXH-170 | 170 | 175 | 30 |
F-DXH-63 | 63 | 68 | 25 | F-DXH-175 | 175 | 180 | 10 |
F-DXH-63 | 63 | 68 | 30 | F-DXH-175 | 175 | 180 | 15 |
F-DXH-65 | 65 | 70 | 10 | F-DXH-175 | 175 | 180 | 20 |
F-DXH-65 | 65 | 70 | 15 | F-DXH-175 | 175 | 180 | 25 |
F-DXH-65 | 65 | 70 | 20 | F-DXH-175 | 175 | 180 | 30 |
F-DXH-65 | 65 | 70 | 30 | F-DXH-180 | 180 | 185 | 10 |
F-DXH-65 | 65 | 70 | 40 | F-DXH-180 | 180 | 185 | 15 |
F-DXH-69 | 69 | 75 | 50 | F-DXH-180 | 180 | 185 | 20 |
F-DXH-70 | 70 | 75 | 10 | F-DXH-180 | 180 | 185 | 25 |
F-DXH-70 | 70 | 75 | 15 | F-DXH-180 | 180 | 185 | 30 |
F-DXH-70 | 70 | 75 | 20 | F-DXH-180 | 180 | 186 | 20 |
F-DXH-70 | 70 | 75 | 25 | F-DXH-180 | 180 | 186 | 25 |
F-DXH-70 | 70 | 75 | 30 | F-DXH-180 | 180 | 186 | 30 |
F-DXH-70 | 70 | 76 | 25 | F-DXH-185 | 185 | 190 | 20 |
F-DXH-70 | 70 | 76 | 40 | F-DXH-185 | 185 | 190 | 25 |
F-DXH-70 | 70 | 76 | 50 | F-DXH-185 | 185 | 190 | 30 |
F-DXH-74 | 74 | 80 | 20 | F-DXH-190 | 190 | 195 | 30 |
F-DXH-74 | 74 | 80 | 25 | F-DXH-194 | 194 | 200 | 20 |
F-DXH-74 | 74 | 80 | 30 | F-DXH-194 | 194 | 200 | 25 |
F-DXH-74 | 74 | 80 | 50 | F-DXH-194 | 194 | 200 | 30 |
F-DXH-75 | 75 | 80 | 8 | F-DXH-195 | 195 | 200 | 15 |
F-DXH-75 | 75 | 80 | 10 | F-DXH-195 | 195 | 200 | 20 |
F-DXH-75 | 75 | 80 | 12 | F-DXH-195 | 195 | 200 | 25 |
F-DXH-75 | 75 | 80 | 15 | F-DXH-195 | 195 | 200 | 30 |
F-DXH-75 | 75 | 80 | 20 | F-DXH-200 | 200 | 206 | 20 |
F-DXH-75 | 75 | 80 | 25 | F-DXH-200 | 200 | 206 | 25 |
F-DXH-75 | 75 | 80 | 30 | F-DXH-200 | 200 | 206 | 30 |
F-DXH-80 | 80 | 85 | 10 | F-DXH-205 | 205 | 210 | 15 |
F-DXH-80 | 80 | 85 | 15 | F-DXH-205 | 205 | 210 | 20 |
F-DXH-80 | 80 | 85 | 20 | F-DXH-205 | 205 | 210 | 30 |
F-DXH-80 | 80 | 85 | 25 | F-DXH-210 | 210 | 215 | 20 |
F-DXH-80 | 80 | 85 | 30 | F-DXH-210 | 210 | 215 | 30 |
F-DXH-80 | 80 | 86 | 20 | F-DXH-210 | 210 | 216 | 20 |
F-DXH-80 | 80 | 86 | 25 | F-DXH-210 | 210 | 216 | 25 |
F-DXH-80 | 80 | 86 | 30 | F-DXH-210 | 210 | 216 | 30 |
F-DXH-80 | 80 | 86 | 50 | F-DXH-215 | 215 | 220 | 15 |
F-DXH-84 | 84 | 90 | 20 | F-DXH-215 | 215 | 220 | 20 |
F-DXH-84 | 84 | 90 | 25 | F-DXH-215 | 215 | 220 | 25 |
F-DXH-84 | 84 | 90 | 30 | F-DXH-215 | 215 | 220 | 30 |
F-DXH-85 | 85 | 90 | 10 | F-DXH-220 | 220 | 225 | 20 |
F-DXH-85 | 85 | 90 | 12 | F-DXH-220 | 220 | 225 | 25 |
F-DXH-85 | 85 | 90 | 15 | F-DXH-220 | 220 | 225 | 30 |
F-DXH-85 | 85 | 90 | 20 | F-DXH-220 | 220 | 226 | 20 |
F-DXH-85 | 85 | 90 | 25 | F-DXH-220 | 220 | 226 | 30 |
F-DXH-85 | 85 | 90 | 30 | F-DXH-224 | 224 | 230 | 30 |
F-DXH-90 | 90 | 95 | 10 | F-DXH-225 | 225 | 230 | 15 |
F-DXH-90 | 90 | 95 | 15 | F-DXH-225 | 225 | 230 | 20 |
F-DXH-90 | 90 | 95 | 20 | F-DXH-225 | 225 | 230 | 25 |
F-DXH-90 | 90 | 95 | 25 | F-DXH-225 | 225 | 230 | 30 |
F-DXH-90 | 90 | 95 | 30 | F-DXH-230 | 230 | 236 | 35 |
F-DXH-90 | 90 | 96 | 20 | F-DXH-240 | 240 | 246 | 20 |
F-DXH-90 | 90 | 96 | 25 | F-DXH-240 | 240 | 246 | 30 |
F-DXH-90 | 90 | 96 | 30 | F-DXH-245 | 245 | 250 | 15 |
F-DXH-90 | 90 | 96 | 50 | F-DXH-245 | 245 | 250 | 20 |
F-DXH-94 | 94 | 100 | 20 | F-DXH-245 | 245 | 250 | 30 |
F-DXH-94 | 94 | 100 | 25 | F-DXH-250 | 250 | 255 | 15 |
F-DXH-94 | 94 | 100 | 30 | F-DXH-250 | 250 | 255 | 20 |
F-DXH-94 | 94 | 100 | 40 | F-DXH-250 | 250 | 255 | 30 |
F-DXH-95 | 95 | 100 | 10 | F-DXH-250 | 250 | 256 | 20 |
F-DXH-95 | 95 | 100 | 12 | F-DXH-250 | 250 | 256 | 30 |
F-DXH-95 | 95 | 100 | 15 | F-DXH-260 | 260 | 265 | 15 |
F-DXH-95 | 95 | 100 | 20 | F-DXH-265 | 265 | 270 | 25 |
F-DXH-95 | 95 | 100 | 25 | F-DXH-265 | 265 | 270 | 30 |
F-DXH-95 | 95 | 100 | 30 | F-DXH-274 | 274 | 280 | 30 |
F-DXH-100 | 100 | 105 | 10 | F-DXH-275 | 275 | 280 | 15 |
F-DXH-100 | 100 | 105 | 15 | F-DXH-275 | 275 | 280 | 20 |
F-DXH-100 | 100 | 105 | 20 | F-DXH-275 | 275 | 280 | 30 |
F-DXH-100 | 100 | 105 | 25 | F-DXH-280 | 280 | 286 | 20 |
F-DXH-100 | 100 | 105 | 30 | F-DXH-280 | 280 | 286 | 30 |
